Features Hydraulic Iron Angle Section Bending Machine / Steel Profile Roll Bending Machine
1. The hydraulic round bending machine HRBM65 features a steel plate welding structure. ( Steel-welded construction frame)
2. The hydraulic round bending machine HRBM65 has the advantages of hydraulic wheel drive and more power
3. The nether two axes are driven by a powerful hydraulic motor
4. The button panel features reliable functions that can easily conduct operations on machine

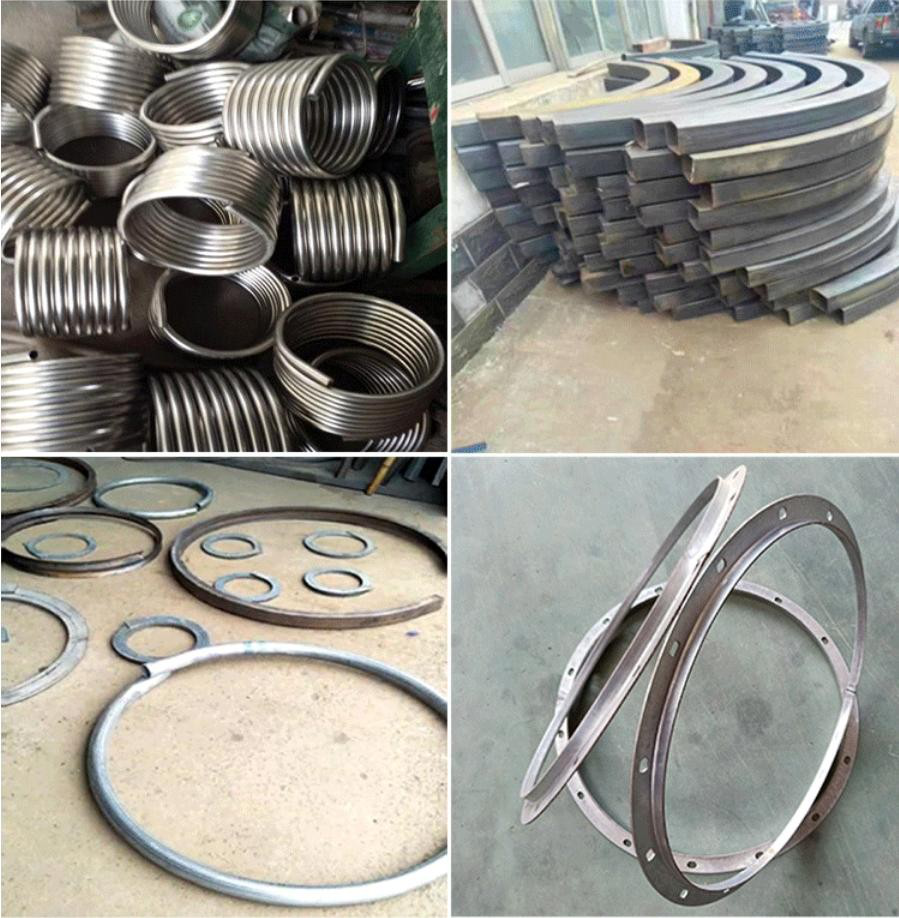

5. The standard combination molds of hydraulic round bending machine can finish processing many work pieces in various shapes. Pipe forming section bending machine
6. With one standard combination roller pr
Model | JY-63 | |
Yield coefficient(N) | ≤345 | |
Minimum coil diameter(mm) | 300-400 | |
Crimpable material | Capacity of Bar | 30x10mm |
Capacity of squared tube |
3x30x1mm | |
Capacity of rounded tube |
30x1mm | |
Dimension | L | 1100mm |
w | 880mm | |
H | 840mm | |
Main motor power | 5.5kw | |
Motor power of oil pump | 1.5kw | |
Voltage | Monophasic 220V | |
Weight | 750kg | |
