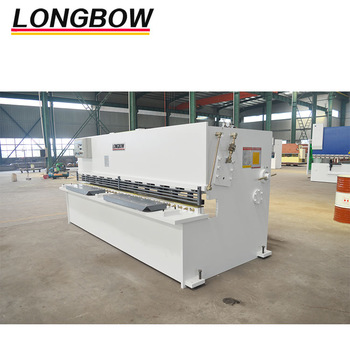

China Factory Sheet Metal Guillotine Shearing Stainless Steel Plate Cnc Hydraulic Shear
Product Main Features:
1.Metal plate welded structure, with hydraulic transmission and accumulator return.
2.Typical of an easy operation, reliable performance and nice appearance, fitted with digital controller.
3.Indication is provided for adjustment of blades clearance, for a handy and prompt adjustment.
4.Alignment device with lighting and control device for shearing stroke are set.
5.Worktable with balls for material feeding convenient, to minimize scratch off plate and to reduce frictional resistance.
Main Technical Parameters:
<td height="14" data-mce-style="font-family: Verdana, Arial, Helvetica, sans-serif; font-size: 11pt; color: #000000; margin: 0px; box-sizing: content-box; padding: 0px; font-style: inherit; font-weight: 400; line-height: inherit; float: none; text-align: center; vertical-align: middle; border: 0.1px solid #000000; height: 14.25pt; width: 111px;" style="font-family: Verdana, Arial, Helvetica, sans-serif; font-size: 11pt; color: rgb(0, 0, 0); margin: 0px; box-sizing: content-box; padding: 0px; font-style: inherit; line-height: inher
| Model | Cutting thickness | Cutting length | Cutting Angle | Stopper Ajust Range | Main motor(kW) |
| TYPE | (mm) | (mm) | ° | (mm) | kW |
| 4*2500 | 4 | 2500 | 1°30' | 20-500 | 5.5 |
| 4*3200 | 4 | 3200 | 1°30' | 20-500 | 5.5 |
| 4*4000 | 4 | 4000 | 1°30' | 20-600 | 5.5 |
| 4*6000 | 4 | 6000 | 1°30' | 20-800 | 7.5 |
| 6*2500 | 6 | 2500 | 1°30' | 20-500 | 7.5 |
| 6*3200 | 6 | 3200 | 1°30' | 20-500 | 7.5 |
| 6*4000 | 6 | 4000 | 1°30' | 20-600 | 7.5 |
| 6*5000 | 6 | 5000 | 1°30' | 20-600 | 7.5 |
| 6*6000 | 6 | 6000 | 1°30' | 20-800 | 11 |
| 8*2500 | 8 | 2500 | 1°30' | 20-500 | 7.5 |
