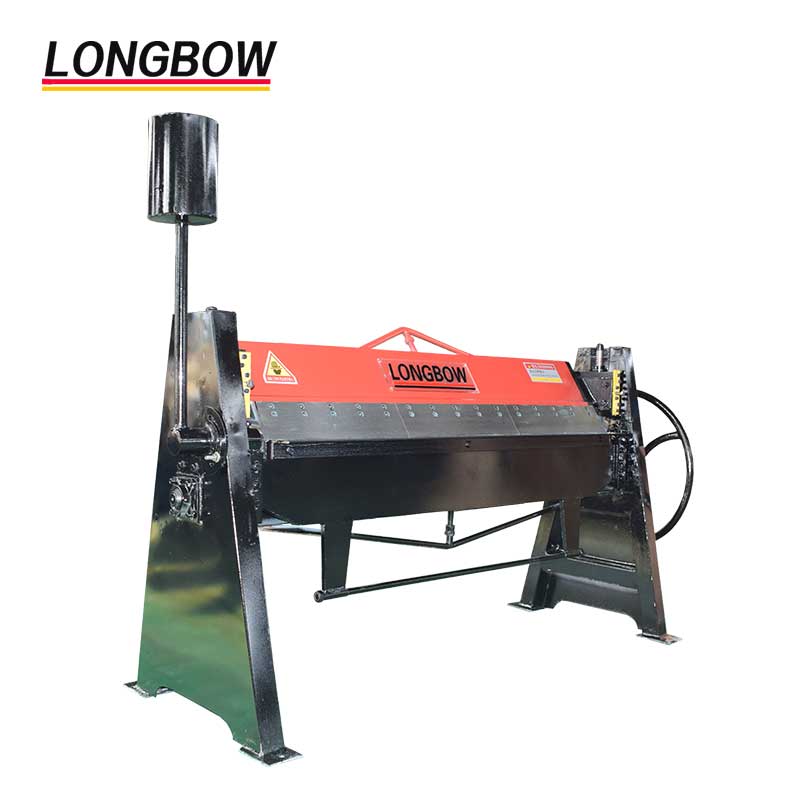

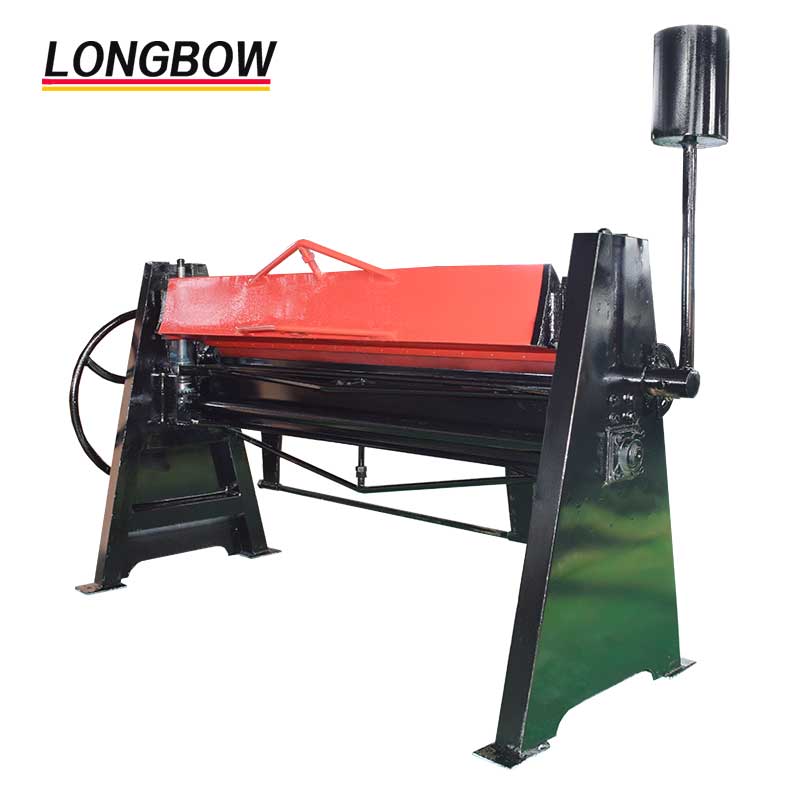

manual folding machine is of all -steel welded construction. Simple construction with good appearance. It is easy to operate,with low energy consumption.
Our manual folding machine are of many types and incorporate with all the outstanding features.
The advantage is that both its up and down movements can be adjusted.They can process workpieces
according to the customer's requirement, and can fold sheet into a box/pan with four sides.
manual folding machine are suitable for duct making, metal box forming and pan processing and can be used on the site.
Main Features
1.Unique design structure, using leverage principle, adding weight hammer design, folding plate more easily. 2.Double screw design is adopted to adjust the up and down motion of the slider so as to achieve better synchronization. 3.SKF brand bearings are used in the internal structure, and the upper and lower movements are smoother.
Model
Max thickness (mm)
Max width (mm)
Folding angle（°）
Weight (kg)
dimensions(mm)
WS-1.5*1300
1.5
1300
45°
400
1950*650*1500
WS-1.5*1500
1.5
1500
45°
450
2160*650*1500
WS-1.5*2000
1.5
2000
45°
550
2650*650*1500
WS-1.5*2500
1.5
2500
45°
600
3100*650*1500
Details Images
machine parts
Name:Bearing Model:55206
Original:Sweden
Unique heat treatment process and transition design enable SKF bearings to have higher load capacity, lower noise and higher speed, thus achieving better environmental performance.
machine parts
Name: Angle adjusting device Material:steel Original:china The folding angle adjusting device can adjust the bending angle of the sheet according to your needs, and the upper end is adding weight hammer design, folding plate more easily.
machine parts
Name: handwheel Material:steel
Original:china
The design of the big handwheel . He controls the up and down movement of the blade.
When the plate is placed, adjust the handwheel to control the blade to clamp, don't let plate move.
machine parts
Name:blade
Material:42CrMo
Original:China
Selected high quality steel products are made by forging, high temperature quenching, fine grinding and other processes. After qualified testing, they are installed on the equipment .Good wear resistance and durability.
