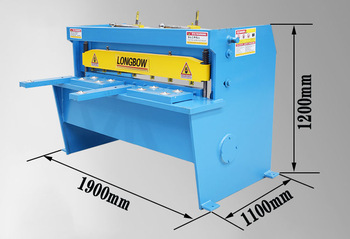

Small Q11-2x1500mm Aluminum plate cutting machine Mini Mechanical shearing machine

Quantity: - +
Add to Basket
Enquiry

Product Description

Products Description

Performance Features

This machine adopts steel welding structure, has the advantages of simple structure,convenient operation, beautiful appearance,low energy consumption, use gear reducer can be installed or, electromagnet, foot switch can be remote control, apply to
metallurgy, light industry, machinery, hardware and other 0.1~2.0mm of ordinary steel plate processing shear.

Main Features

1. the whole machine body uses the integrally weld structure, ensuring the high strength and good rigidity of the machine.
 2. The machine hasn't the clutch and the flywheel. It shears the sheet-metal directly drived by the magnetic brake motor. This reduces the idle time of the motor and saves the energy.
3.shearing blade uses 6Cr2Si material, ensuring the good performance and long performance life.
4. the structure of the machine is simple, easy operation and low consumption.
Model
Cutting
thickness
(mm)
Cutting
width
(mm)
Cutting
angle
(°)
No.of strokes
(times/min)
Backstage
range
(mm)
Power of
motor
(kw)
dimensions(mm)
Q11G-2*600
2
600
1°30′
30
350
3
1150*640*1100
Q11G-2*800
2
800
1°30′
30
350
3
1150*640*1100
Q11G-2*1000
2
1000
1°30′
30
350
3
1350*640*1100
Q11G-2*1300
2
1300
1°30′
30
350
3
1850*640*1100
Q11G-2*1500
2
1500
1°30′
30
400
3
1850*640*1100
Q11G-2*1600
2
1600
1°30′
30
400
3
1850*640*1100
Details Images
machine parts
Name:Pressing device
Material:polyurethane
Original:China
Polyurethane material is used in the pressing device, which has the characteristics of high wear resistance and good elasticity.While fixing the plate, the shearing accuracy is guaranteed, the plate is not scratched, and the
smoothness of the plate is guaranteed.
machine parts
Name: Feeding ball
Material:Stainless steel
Original:china
Stainless steel feeding ball can help operators to easily feed, prevent friction between sheet metal and worktable, protect sheet metal and worktable surface, and prevent scratches.
machine parts
Name:shear blade
Material:6Crw2si
Original:China
Selected high quality steel products are made by forging, high temperature quenching, fine grinding and other processes. After qualified testing, they are installed on the equipment to ensure sharp edges and wear-resistant blade height.
machine parts
Name: electrics
Brand:Schneider
Original:France
It adopts high quality Schneider Electric with high stability and long service life.Electric shearing machine an also change the voltage according to your country's voltage to meet the actual voltage produced in your country.
