Performance features:

1.It's a brand new design which can keep angle steel tailing less than 350mm.

2.It's controlled by servo motor and it's feeding dimensions are accurate.

3.It only requires to input the size of workplace, distance between holes and how many holes to punch when programming, which is very easy to operate.

4.With production memory functions, the production orders can be reacked and checked.

5.The new design mold can complete the angle steel switching within 5seconds, with the durable punch.

Function:

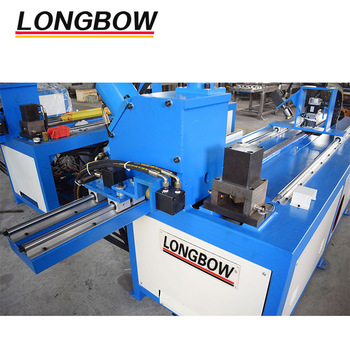

Fully automatic angle steel flange production line or CNC angle steel flange production line, Is mainly for punching and cutting duct angle steel flange. The machine are designed to deed, punch, cut, automatically in order to save labor improve efficiency. It's very fast, accurate and highly automatic.

Main technical parameters:

1.Scale of angle steel to process:#3-#5 angle steel.

2.Common punching sizes: max9.5-13mm, min4.2-5.2mm.

3.The number of punches which can be installed simultaneously: 2.

4.Common length of angle steel: 6000mm.

5.Machining accuracy no more the: 0.5mm.

6.Feeding speed of angle steel: 1520m/min.

Main imported configuration:

1.Beijing Huade+Hydraulic system from Taiwan.

2.Japan Omron encoder.

3.Cutter and punching die which are both made of Japan SKH51.

4.Servo motor-driven feeding system.

FAQ:

Q1.What shall we do if don't know how to operate your machine?

A: We can arrange our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached. It's very simple, we have telephone and Email support at 24hours per day.

Q2.What are your payment terms?

A: We support T/T, L/C Western Union and so on. Other ways can also be accepted after we both sides' discussion and agreement.

Q3.How to Guarantee Product Quality?

A:We arrange a final test before shipment. We will make shipments after making sure machine is in the best performance.
